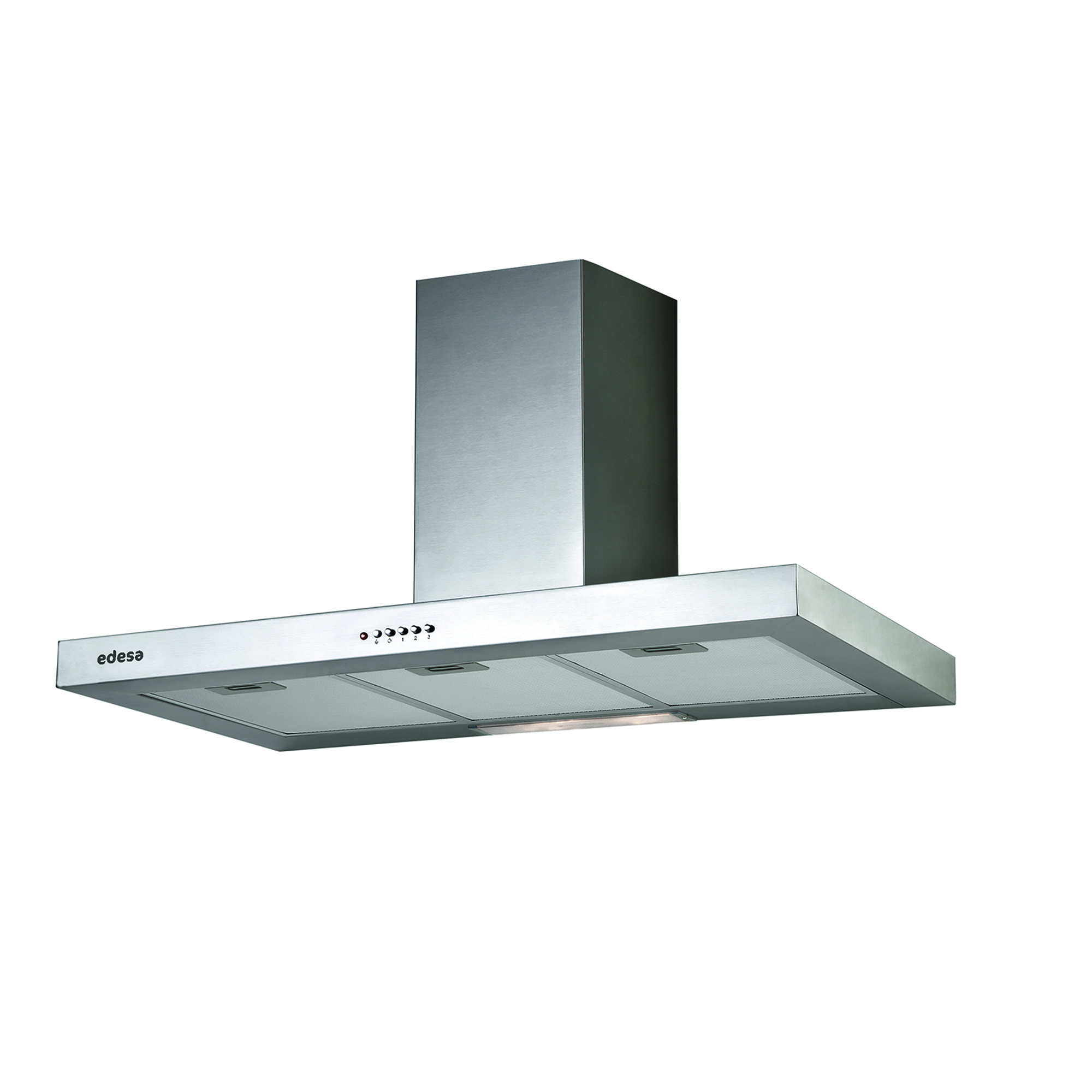

ECB-9411 X
Cod. 932271886
EAN 8435436108686
Product specifications
GENERAL INFORMATION
EAN/UPC
8435436108686
Subfamily
Box
Product sheet according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564
AEC (Annual energy consumption) (kWh/year)
51,9
EEI class (energy efficiency class)
C
FDE (fluid dynamic efficiency)
9,8
FDE class (fluid dynamic efficiency class)
E
LE (light efficiency) (lux/W)
8,4
LE class (light efficiency class)
E
GFE (grease filtering efficiency)
74,6
GFE class (grease filtering efficiency class)
D
Airflow in normal mode MIN (m3/h)
210
Airflow in normal mode MAX (m3/h)
400
Acoustic power in normal mode MIN (dB)
50
Acoustic power in normal mode MAX (dB)
62
Po (energy consumption in off mode) (W)
0
Ps (energy consumption in standby mode) (W)
0
Integration directive EU 66/2014
ƒ (time increase factor)
1,6
EEI (Energy Efficiency Index)
84,4
QBEP (maximum efficiency at air flow point) (m3/h)
208,6
PBEP (maximum efficiency at pressure point) (Pa)
123
WBEP (power consumption at maximum efficiency) (W)
72,9
WL (nominal power lighting system) (W)
11
EMIDDLE (Average illuminance on the cooking surface) (lux)
92,5
External Dimensions
Width (mm)
900
Depth (mm)
475
Maximum total height (mm)
932
Minimum total height (mm)
675
Diamètre de sortie (mm)
150, 125
Characteristics
Motor quantity
1
Motor model
K7PLUS
Maximum pressure (Pa)
200
Filter technology
Aluminium mesh
Control technology
Mechanical push button
Booster
-
Power levels
3
Timer
-
Filter saturation indicator
-
Charcoal filter replacement indicator
-
Dimmer function
-
Connectivity
-
Remote control
-
Display
-
Lighting
Light model
LED E-14
Ray technology
LED
Installation
Minimum distance to electric plate (mm)
650
Minimum distance to gas plate (mm)
650
Recirculation option
√
Charcoal filter
-
Back draught shutter
Included
Inner shield
-
Electric connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50/60
Nominal input power (W)
106
Electric shock protection
Class II
Power cord length (m)
1,5
Accessories
Upper decorative duct extension
2861302
White decorative duct
No
Black decorative duct
No
Island tube booster
No
Back draught shutter
Included
MAX PRO Metal filter
2800917
Activated charcoal filter
2859394
Noiseless flexible duct
2893002
Recirculation kit
2894000
