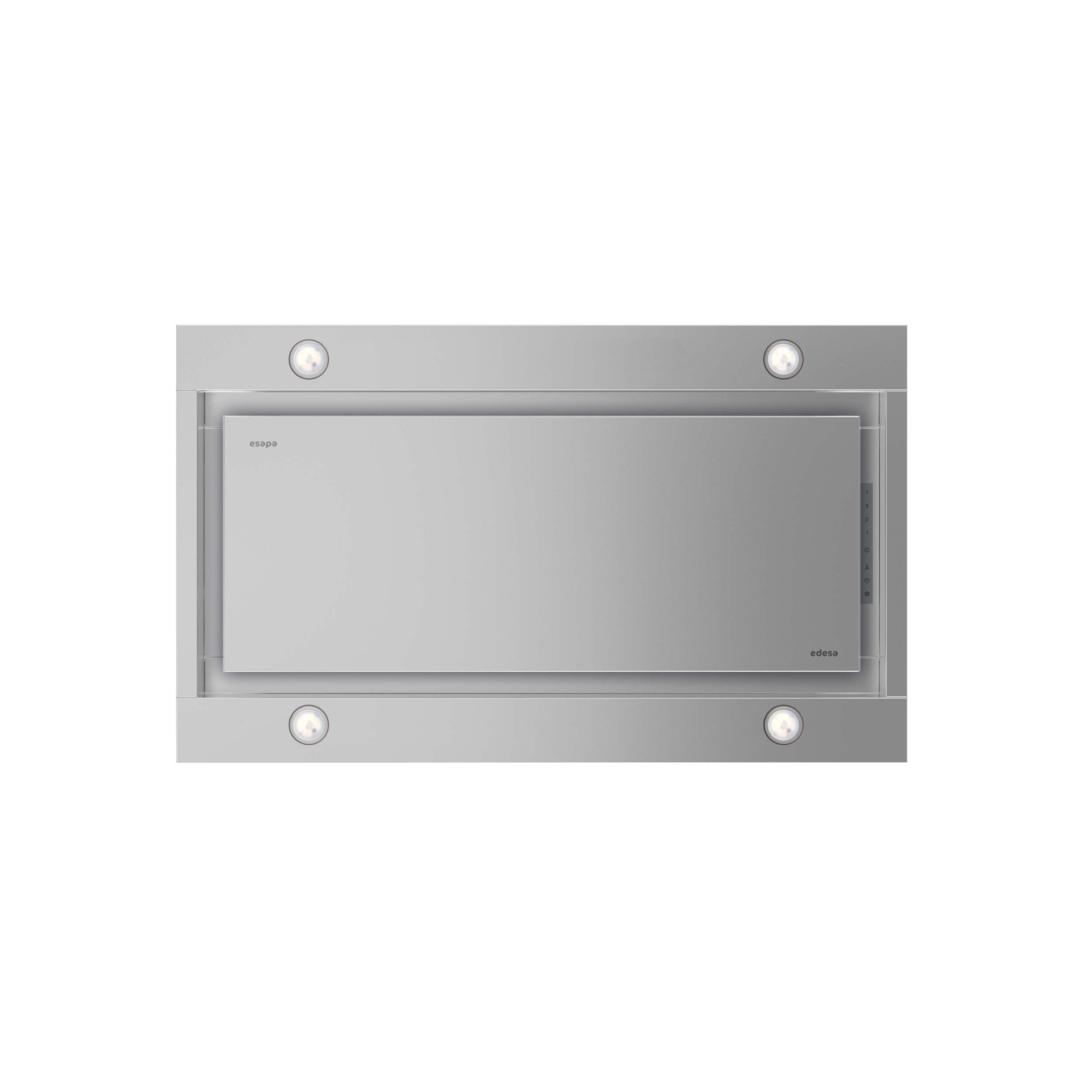

ECC-1832 X
Cod. 932271953
EAN 8422248355490
Product specifications
GENERAL INFORMATION
EAN/UPC
8422248355490
Subfamily
Ceiling
Product sheet according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564
AEC (Annual energy consumption) (kWh/year)
58,9
EEI class (energy efficiency class)
A
FDE (fluid dynamic efficiency)
31,5
FDE class (fluid dynamic efficiency class)
A
LE (light efficiency) (lux/W)
36,6
LE class (light efficiency class)
A
GFE (grease filtering efficiency)
91,2
GFE class (grease filtering efficiency class)
B
Airflow in normal mode MIN (m3/h)
340
Airflow in normal mode MAX (m3/h)
600
Airflow in boost mode MIN (m3/h)
850
Acoustic power in normal mode MIN (dB)
50
Acoustic power in normal mode MAX (dB)
65
Acoustic power boost mode (dB)
67
Po (energy consumption in off mode) (W)
0,3
Ps (energy consumption in standby mode) (W)
0
Integration directive EU 66/2014
ƒ (time increase factor)
0,9
EEI (Energy Efficiency Index)
54,6
QBEP (maximum efficiency at air flow point) (m3/h)
350,4
PBEP (maximum efficiency at pressure point) (Pa)
380
WBEP (power consumption at maximum efficiency) (W)
132,8
WL (nominal power lighting system) (W)
14
EMIDDLE (Average illuminance on the cooking surface) (lux)
513

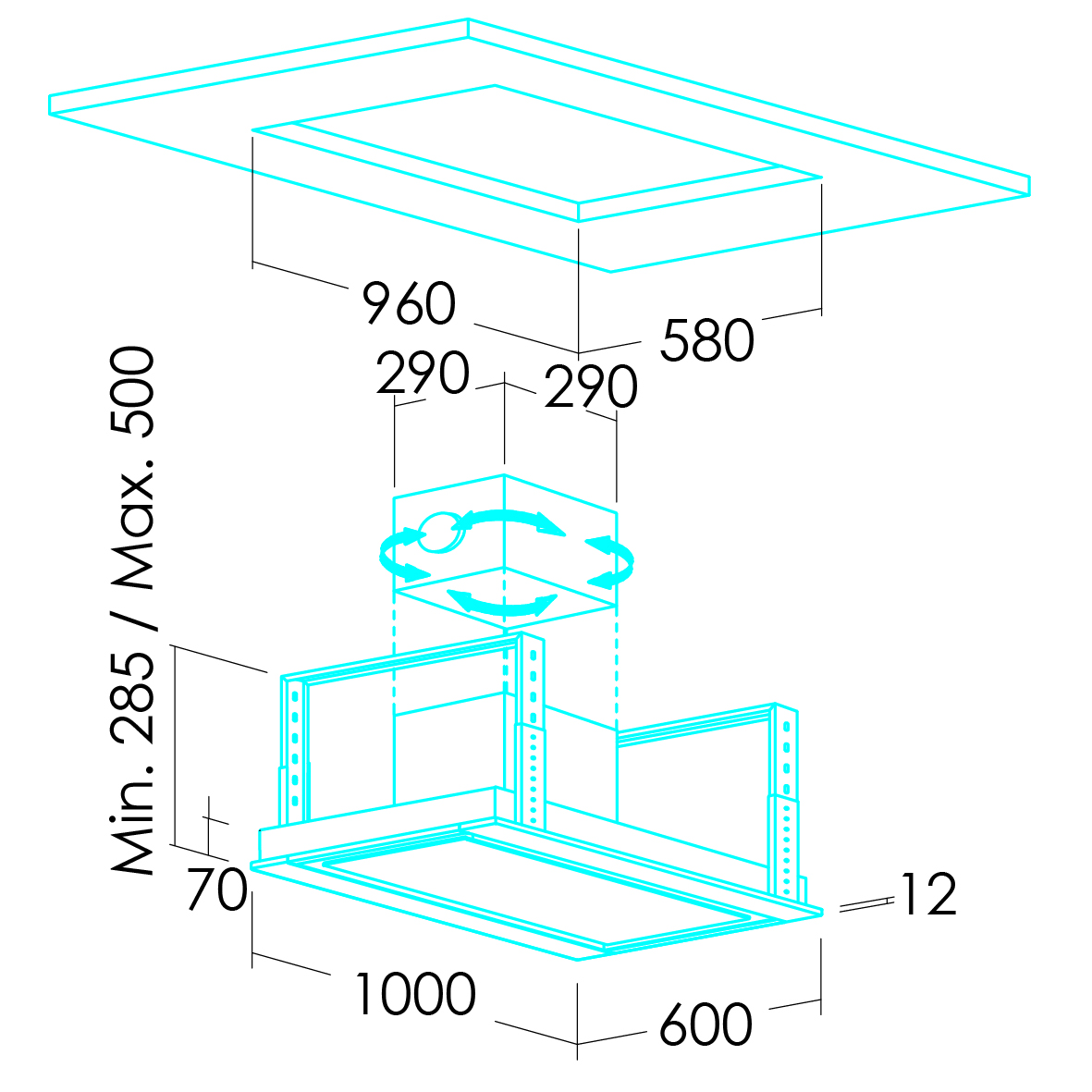

External Dimensions
Width (mm)
1000
Depth (mm)
600
Maximum total height (mm)
500
Minimum total height (mm)
285
Diamètre de sortie (mm)
150
Characteristics
Motor quantity
1
Motor model
BT3
Maximum pressure (Pa)
450
Filter technology
Aluminium mesh
Control technology
Electronic Touch Control
Booster
√
Power levels
4
Timer
√
Filter saturation indicator
√
Charcoal filter replacement indicator
-
Dimmer function
√
Connectivity
-
Remote control
√
Display
Display_grafico
Lighting
Light model
ECOLED 2
Ray technology
LED
Installation
Minimum distance to electric plate (mm)
550
Minimum distance to gas plate (mm)
660
Recirculation option
√
Charcoal filter
-
Back draught shutter
-
Inner shield
-
Electric connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50
Nominal input power (W)
294
Electric shock protection
Class II
Plug type
Type C
Accessories
Back draught shutter
02832006
MAX PRO Metal filter
02800917
Activated charcoal filter
02859398
Noiseless flexible duct
02893002
